Zzgenerate Plastic Bucket Horizontal Conveying Z Elevator Conveyor
for Food Industry
BUCKET ELEVATOR INTRODUCTION

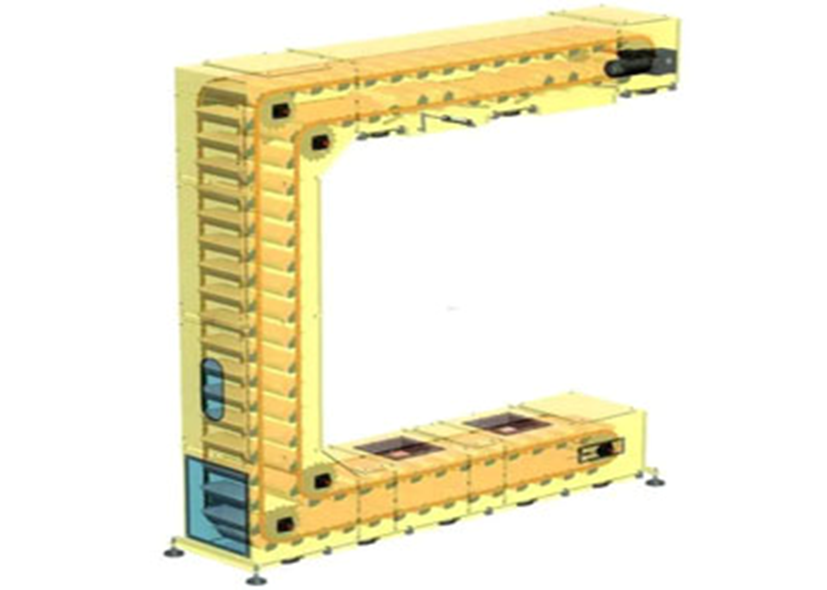

Z Type bucket elevator is the universally lifting conveying
equipment which is made up of movement parts (bucket and traction
belt or chain), upper part with transmission drum, down parts with
tension drum, middle cabinet, drive device and so on.
BUCKET ELEVATOR APPLICATION
Cereals/Nuts/Pet food/Snack foods/Confections/Pasta/Coffee/Fresh &
frozen vegetables/Frozen fish & poultry/Tablets/Capsules/Bottle
caps/Fasteners/Coins/Ammunition/Explosives/Palletized
chemicals/Carbon black/Hardware products etc.
BUCKET ELEVATOR ADVANTAGE
1. Adjustable conveying speed to realize uniform feeding
2. Zero crushing in conveying process
3. Full-closed structure. So, there is no pollution.
4. Single discharge but also for muti-discharges.
5. The buckets can resistance to high and low temperature.
BUCKET ELEVATOR PARAMETERS
| Bucket Volume | 1.8L | 3.8L | 6.5L |
| Bucket Material | PP/ABS/SUS |
| No.s of discharge port | Single | Single or Muti-discharges |
| Frame Material | Stainless steel/Carbon Steel |
| Output | 4-6 m³/h | 6.5-8 m³/h | 5.5-12.3 m³/h |
| Voltage | 110V/220V/380V/410V/As you need |
| Power | 0.75 kw | 1.5 kw | 2.2 kw |
| Dimensions | Can be Customized |
BUCKET ELEVATOR PICTURES
BUCKET ELEVATOR PACKAGING
BUCKET ELEVATOR SHIPPING
