Iron Powder Rotary Vibrating Sieve Ultrasonic Vibration Sieve for
Sieving Iron Powder
ULTRASONIC VIBRATING SCREEN WORKING PRINCIPLE
Ultrasonic sieving system consists of ultrasonic generator, energy
converter and resonant ring. Ultrasonic generator produces high
frequency oscillation and energy converter turns it into
high-frequency sinusoidal longitudinal shock wave. This shock wave
gets to resonant ring to make it resonate. Then resonant ring puts
oscillation transmission to screen surface evenly. Materials on the
surface will do low-frequency three dimensional vibration and
ultrasonic vibration at the same time. This can prevent mesh
clogging and improve yield and quality of screening.
ULTRASONIC VIBRATING SCREEN FEATURE
•Ultrasonic wave uses integrated circuit plate, fully obturated,
digital CPU control, specialized voyage plug: it can continue
working for 12 ~ 24 hours, there is no cooling process.
•Screening precision can be improved by 70% and handling capacity
is 2 ~10 times more than the common screening machine. It is
particularly significant to materials which are difficult to screen
such as Silicon carbide powder, hard alloy powder, coffee powder.
•Sieving mesh can reach 600. It can completely self-clean, be easy
to operate and maintain.
•It can really solve some difficult problems such as strong
absorption, easy reunion, high static, high precision, high
density, light proportion and so on.
•It can ensure that the characteristics of the materials are
unchanged.
ULTRASONIC VIBRATING SCREEN APPLICATION
Chemical industry: resin, paints, industrial chemicals, cosmetics,
paint, medicine powder.
Food industry: powdered sugar, starch, salt, rice flour, milk
powder, milk, egg, soy sauce, fruit juice.
Metals, metallurgical powder: aluminum powder, aluminum powder,
copper powder, ore, alloy powder, welding powder, manganese
dioxide, copper powder, magnetic power, abrasives, refractory,
kaolin, limestone, alumina, carbonate, heavy calcium, silica sand.
Pollution treatment: waste oil, waste water, wastewater dyeing,
additives, such as activated carbon.
COMPARISON BETWEEN ULTRASONIC VIBRATION SCREEN AND COMMON VIBRATION
SCREEN
| Sample specs(mm) | Common | HLC series |
| Trial material | Mesh | result | Mesh | result |
| JHC-1000 | SIC | 500 | Cannot screen | 500 | 1500KG/H |
| JHC-1000 | Cobalt alloy powder | 600 | There is no fine powder in 15 minutes | 600 | 30KG/H |
| JHC-1000 | Vitamin C | 100 | 1KG/H | 100 | 120-150KG/H |
| JHC-500 | Flower powder | 400 | There is no fine powder in 15 minutes | 400 | Screen more than 20% powder in 15 minutes and can screen more than
500 mesh |
| JHC-600 | Ni, Co powder | 325 | Have to screen 3 times | 400 | Just once |
| JHC-450 | Nd-Fe-B powder | 300 | More than 32.2% remain in 30 minutes | 300 | Only 6.9% remain in 30 minutes |

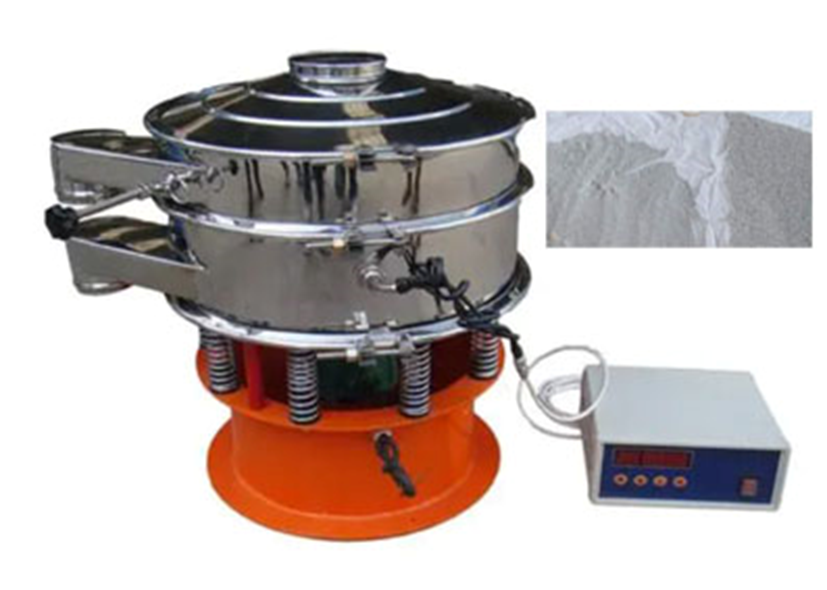

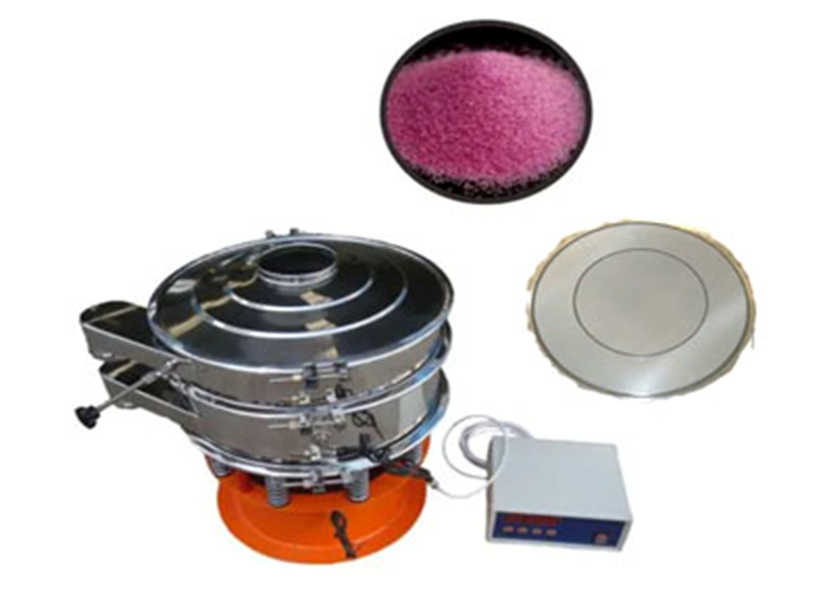

ULTRASONIC VIBRATING SCREEN PICTURES
ULTRASONIC VIBRATING SCREEN PACKAGING AND SHIPPING
We will pack the ultrasonic vibrating screen by wooden case. Then
we can ship the machines by sea, by air, by truck or by train. You
can choose by yourself.
